Blackmagic Design HyperDeck Studio 4K Pro

Key Information:

•Model: Blackmagic Design HyperDeck Studio 4K Pro
•Type: Professional broadcast deck
•Resolution: Up to 2160p60 (4K)
•Connections: 12G-SDI, HDMI 2.0, USB-C, Ethernet
•Recording Formats: H.264, H.265, ProRes, DNxHD
•Media: CFast 2.0, SD UHS-II, USB-C external drives

Detailed Specifications:

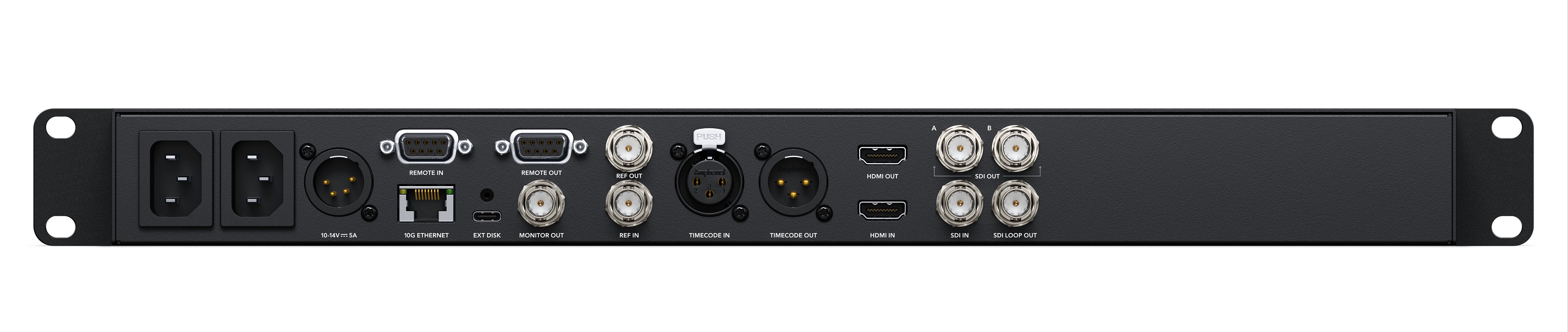

•Video Inputs:
•1 x 12G-SDI
•1 x HDMI 2.0
•Video Outputs:
•2 x 12G-SDI (loop out and playback)
•1 x HDMI 2.0
•Audio Inputs:
•2 x XLR (analog)
•2 x RCA (analog)
•1 x 12G-SDI embedded
•1 x HDMI embedded
•Audio Outputs:
•2 x XLR (analog)
•2 x RCA (analog)
•1 x 12G-SDI embedded
•1 x HDMI embedded
•Storage Slots:
•2 x CFast 2.0
•2 x SD UHS-II
•1 x USB-C for external drives
•Control:

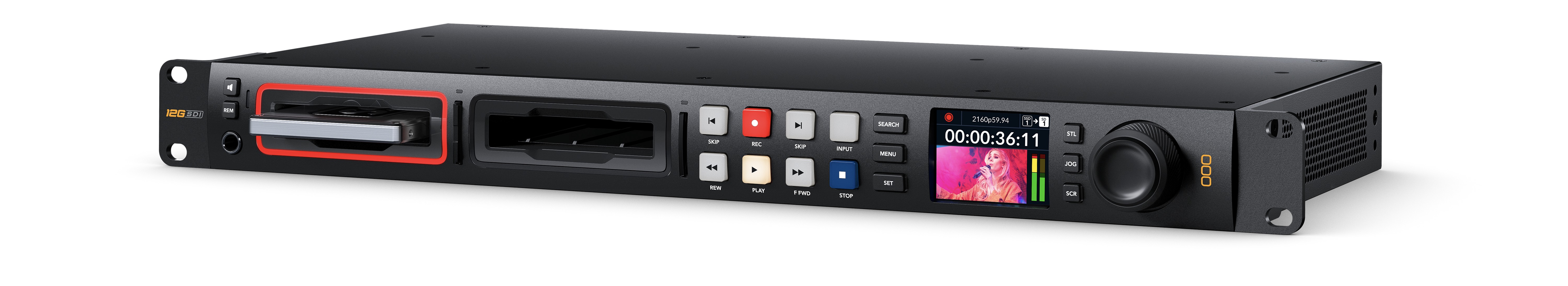

•Front panel with LCD display and physical buttons
•RS-422 remote control
•Ethernet for network control and file transfer
•Dimensions: 1RU rack mountable (19” wide)
•Weight: Approximately 2.9 kg (6.39 lbs)
•Power: Built-in 110-240V AC

How and Why This is a Great Product:

1. Superior Video Quality:

•4K Resolution: Supports up to 2160p60 resolution, providing ultra-high-definition video recording and playback suitable for professional broadcast standards.
•Wide Range of Codecs: Records in H.264, H.265, ProRes, and DNxHD, allowing for high-quality compression and compatibility with various post-production workflows.

2. Versatile Connectivity:

•Multiple Inputs and Outputs: Features 12G-SDI and HDMI 2.0 for high-bandwidth video connections, ensuring compatibility with a wide range of professional video equipment.
•USB-C External Drives: Allows direct recording to external SSDs via USB-C, offering virtually unlimited storage capacity and fast transfer speeds.

3. Professional Audio:

•High-Quality Audio Inputs and Outputs: Includes XLR and RCA analog audio inputs and outputs, as well as embedded audio through SDI and HDMI, ensuring high-fidelity audio recording and playback.

4. Robust and Reliable Design:

•Rack Mountable: 1RU rack-mountable design allows for easy integration into existing broadcast and production setups, saving space and ensuring a tidy equipment rack.
•Durable Build: Built to withstand the demands of professional production environments, ensuring long-term reliability.

5. Flexible Media Options:

•Dual CFast 2.0 and SD UHS-II Slots: Offers multiple recording media options, providing flexibility and redundancy in media storage.
•Continuous Recording: Supports automatic media switching, allowing for uninterrupted recording across multiple cards.

6. Advanced Control Features:

•Front Panel Controls: Equipped with a user-friendly front panel featuring an LCD display and physical buttons for intuitive operation.
•Remote Control: Supports RS-422 and Ethernet for remote control and integration into automated broadcast workflows.

7. Efficient Workflow Integration:

•Network File Transfers: Ethernet connectivity enables fast file transfers and integration with networked storage systems, streamlining the post-production workflow.
•Timecode and Sync: Supports professional timecode and sync signals, ensuring seamless integration with other broadcast and production equipment.


The Blackmagic Design HyperDeck Studio 4K Pro is a top-tier broadcast deck that combines high-resolution video capabilities with versatile connectivity and robust build quality. Its support for multiple recording formats, professional audio features, and advanced control options make it an ideal choice for broadcasters, production studios, and live event producers. With its flexible media options and efficient workflow integration, this deck ensures reliable and high-quality performance in demanding production environments.
